Simple Semi Automatic Round Conductor Wire HV Oil Type Transformer Coil Winding Machine

Description

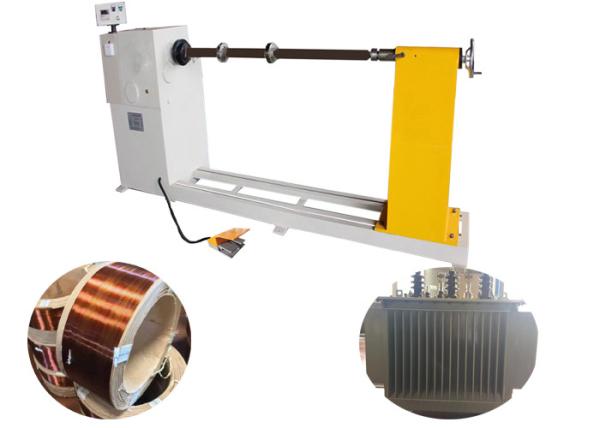

Simple Semi Automatic Round Conductor Wire HV Oil Type Transformer Coil Winding Machine GY-1T is a special wire coil winding machine for winding round copper wire or aluminium wire. This winding machine is mainly used to wind HV transformer coil and other similar products. The wound coil can be used in transformer and other products. This machine is provided with counter, foot pedal, a potentiometer. The counter is used to record the number of turns. The potentiometer is used to adjust the speed stepless. The foot pedal can be used to control the machine and switch the rotating direction. It is very easy to operate the machine.

Main Components

1. Main frame

2. Gearbox

3. Tailstock

4. Electric control cabinet

5. Foot pedal

Main Parameters

Typical standard specifications of GY-1T are shown below, however these can be easily modified as requested.

Center Height: 1000mm

Shaft Size: 40x40x1200mm

Flange Square Hole Size: 40x40mm

Winding Speed: 0-200rpm

Transverse Width: 1000mm

Wire material: round copper or aluminium wire

Counting Range: 0-9999.9

Max. Loading Capacity: 1000KG

Power: 3KW

Machine Weight: 500 kg

Dimension(L*W*H): 2800x700x1400mm
