Big Size Cast Resin Transformer Foil Coil Winding Machine With 1600mm Width Copper Strip


Brief Introduction

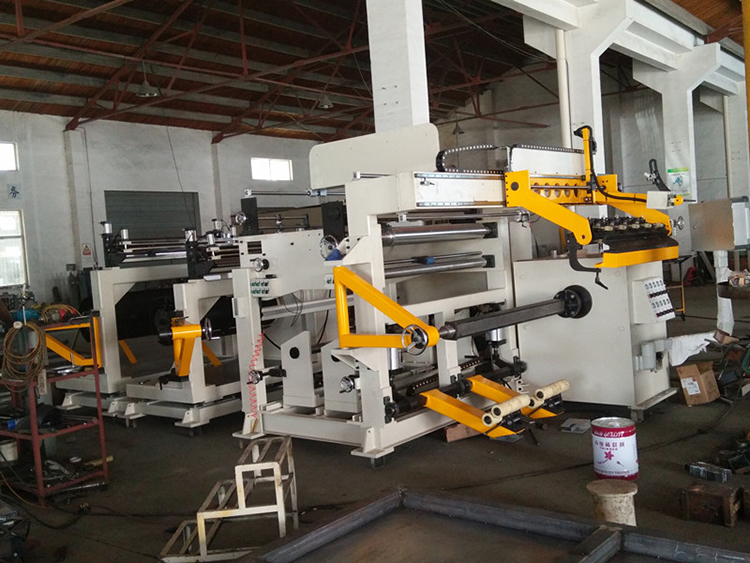

Big Size Cast Resin Transformer Foil Coil Winding Machine With 1600mm Width Copper Strip BRJ1600-2 is a professional equipment for winding Cast Resin or Air Cooled transformers coil. Copper or aluminium strip can be used to make cast resin transformer coil. This machine can wind the strip with maximum width 1600mm. A 30kw motor provides big pulling force to be used to drive the winding shaft. The foil winding machine can handle two layers of foil and two layers of insulation paper at most. Photoelectric sensors are used to rectifying the deviation of the foil when the foil is wound. Touch screen provides a user friendly interface for easy operating.

Features

• Slow starting, when the machine starts, the winding speed is very slow for safety
• Running smooth, the machine runs smoothly during running
• High automation, control system based on PLC makes the machine high automation
• Full function
• Big power, the machine is with 30kw motor
• Neat foil edge, de-burring unit make the foil edge neat
• Tight winding, big tension guarantees tight winding
• Easy operation

Main components

• Main frame, strong structure
• Winding unit, 30kw motor driving
• Foil decoiler, with high tension, expanding rang from 400mm to 520mm
• Insulation decoiler, with high tension
• End-fill strip feeder, 8 pcs
• Cleaning system, pneumatic driving
• Cutting system, pneumatic driving
• Foil deburring system
• Edge alignment system, photoelectric sensing
• Automatic welding unit, TIG
• Electronic control system
• Pneumatic system

Main Parameters

The following is the standard specification of BRJ100-2, however, these specifications can be mended as requested.
